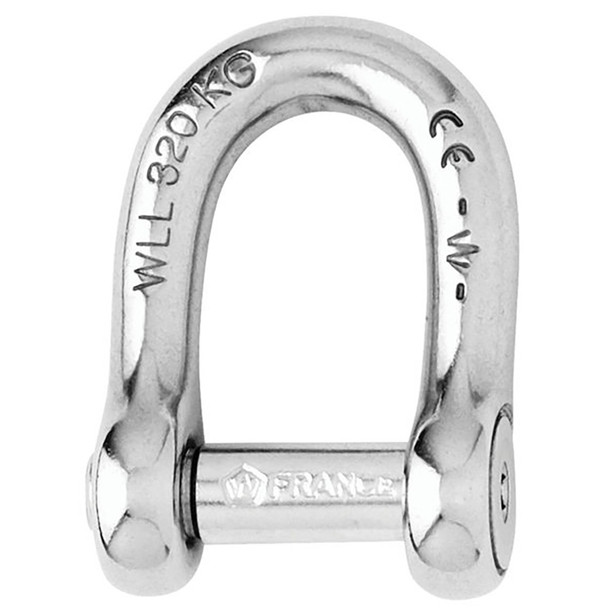

Self-Locking Allen Head Pin D Shackle - 8mm Diameter - 5/16"

Features:

• Self-locking shackle with allen head pin D forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e…)
• CE marking

Applications:

• Ideal to link chain and anchor
• On the halyard, avoids to damage the sails
• To be used when the clutter is reduced

Specifications:

• Materials: 316 stainless steel grade
• Working load: (lb) 2110 / (kg) 960
• WLL: (lb) 1190 / (kg) 540
• Breaking load: (lb) 5950 / (kg) 2700
• Weight: (lb) 0.117 / (g) 53

Dimensions:

• A: (inch) 1 1/32" / (mm) 26
• B: (inch)5/8" / (mm) 16
• C: (inch) 5/16" / (mm) 8
• D: (inch) 5/8" / (mm) 16
• D diameter: (inch) 5/16" / (mm) 8
• E: (inch) 9/32" / (mm) 7
• F: (inch) 1 13/16" / (mm) 46
• G: (inch) 1 19/64" / (mm) 33

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
  WLL = Breaking load / 5

*Sold as an Individual
