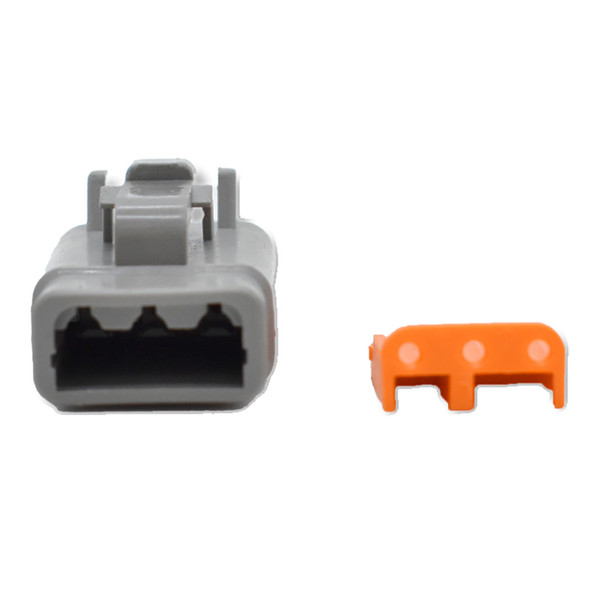

3 Position DTM Female Connector with Wedge Lock

The DTMO4-3P and DTMO6-3S connectors are part of the DTM series and form a complete 3-cavity connection. These Deutsch-compatible connectors are fully interchangeable with matching Deutsch parts.

Designed for reliability in harsh environments, the DT series can deliver up to 7.5 amps continuously. This 3-pin DTM connector provides a secure, weather-resistant connection ideal for marine, automotive, and industrial wiring applications.

Each 3-pin DTM connector features corrosion-resistant contacts, a rugged housing, and a reliable locking mechanism, ensuring consistent performance and long-lasting electrical connections even in demanding and harsh conditions.

Features:

• Comes in bags of 100 with a separate bag of wedge locks included.
• Male uses Solid DTM 16-20AWG Machined Terminal.
• Female uses DTM 16-18AWG Machined Terminal or DTM 18-20AWG Machined Terminal

Specifications:

• Heat Shrink: No
• Package Qty: 100
• Box Dimensions: 0"H x 4"W x 5"L WT: 0.01 lbs
• UPC: 810196333345
