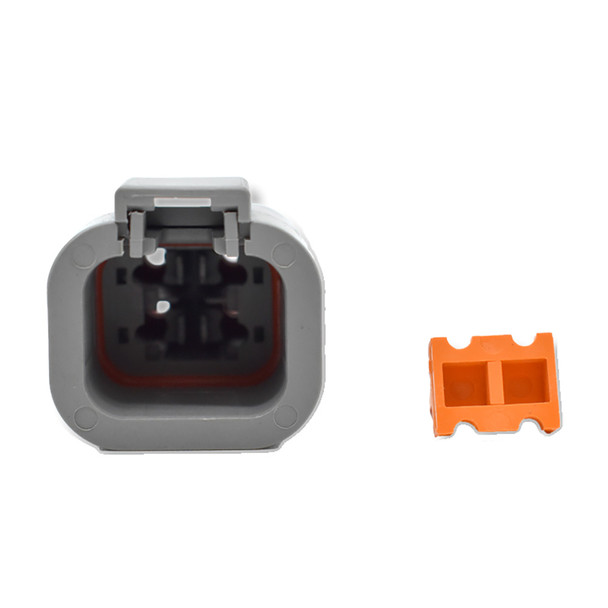

4 Position DTP Male Connector with Wedge Lock

The DTPO4-4P and DTPO6-4S connectors are part of the DTP series and form a complete 4-cavity connection. These Deutsch-compatible connectors are fully interchangeable with matching Deutsch parts.

Designed for reliability in harsh environments, the DT series can deliver up to 25 amps continuously. This DTP 4-pin connector provides a secure, weather-resistant connection ideal for marine, automotive, and industrial wiring applications.

Each DTP 4-pin connector features corrosion-resistant contacts, a rugged housing, and a reliable locking mechanism, ensuring long-lasting, dependable performance in demanding electrical systems and harsh environmental conditions.

Features:

• Comes in bags of 100 with a separate bag of wedge locks included
• Male uses DTP 12-14AWG Machined Terminal or DTP Crimp or Stamped DTP Crimp
• Female uses DTP 12-14AWG Machined Terminal or DTP Crimp, or Stamped DTP Crimp

Specifications:

• Heat Shrink: No
• Package Qty: 100
• Box Dimensions: 1"H x 4"W x 4"L WT: 0.15 lbs
• UPC: 810196333383
