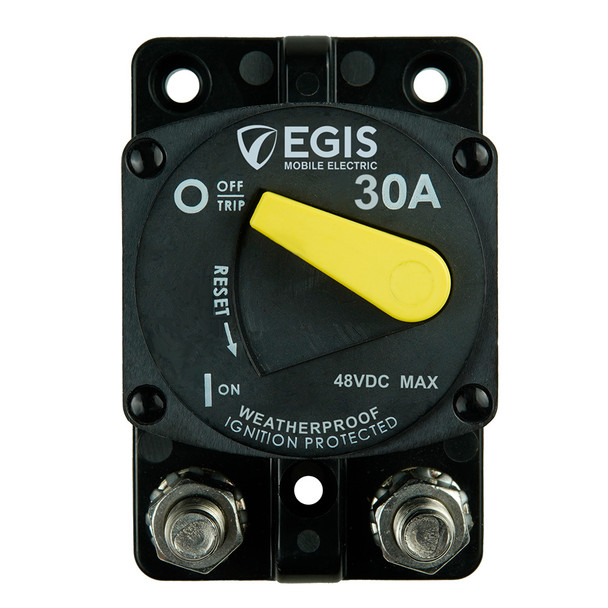

30A Circuit Breaker - 87 Series - Surface Mount

Features:

• Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation.
• High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications.
• Meets New ABYC E-11 Interrupt Requirements
• High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power.
• Ignition-protected safe for installation in closed compartments with potential explosive gases.
• Harsh Environment design with stainless-steel hardware and self-locking terminal nuts.

Specifications:

• Amperage: 30a
• Box Dimensions: 3"H x 5"W x 6"L WT: 0.6 lbs
• UPC: 850035199299
