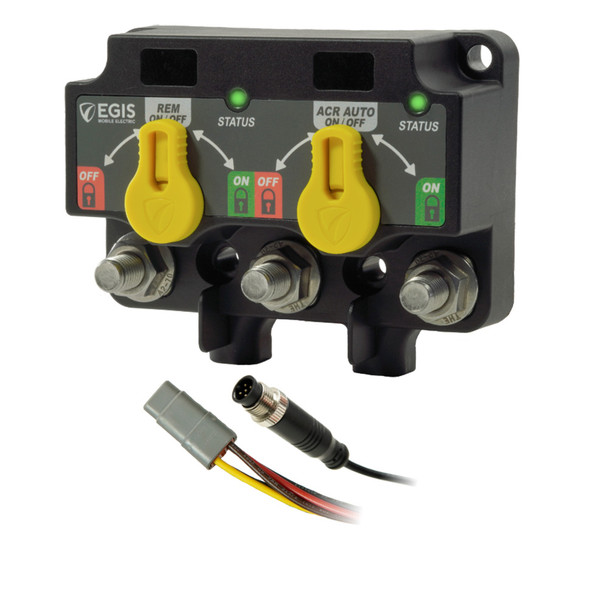

XD NMEA 2000 Dual Relay/VSR with Knobs 8-Pin DT Connector

XD NMEA 2000 Dual Relay/VSR with Knobs is a high-power, dual-circuit marine and vehicle electrical management device. It combines a remote battery switch and an Automatic Charging Relay (ACR) / Voltage Sensing Relay (VSR) into a single compact, programmable module.

Features:

• NMEA 2000 Integration: Allows seamless remote control and real-time monitoring of battery voltage and switch status directly from compatible Multi-Function Displays (MFDs).
• High Capacity: Supports continuous loads up to 500A and cranking loads up to 1600A per switch, making it suitable for heavy-duty marine or work truck systems.
• Manual Override Knobs: Includes intuitive 3-position local knobs that allow you to manually force relays Open or Closed and lock them in place.
• Smart Charge Management: Eliminates dead start batteries by automatically sharing charging sources (e.g., an alternator) and isolating batteries when no charging is present.
• Programmability: Easily configurable via built-in dip switches to customize voltage offsets and delay settings.
• Bulletproof Construction: Sealed to IP67/IP6K9K standards, featuring high-temperature electronics and corrosion-resistant stainless-steel hardware.

Specifications:

• Type: Electric
• Box Dimensions: 3"H x 6"W x 7"L WT: 2 lbs
• UPC: 850074331797
