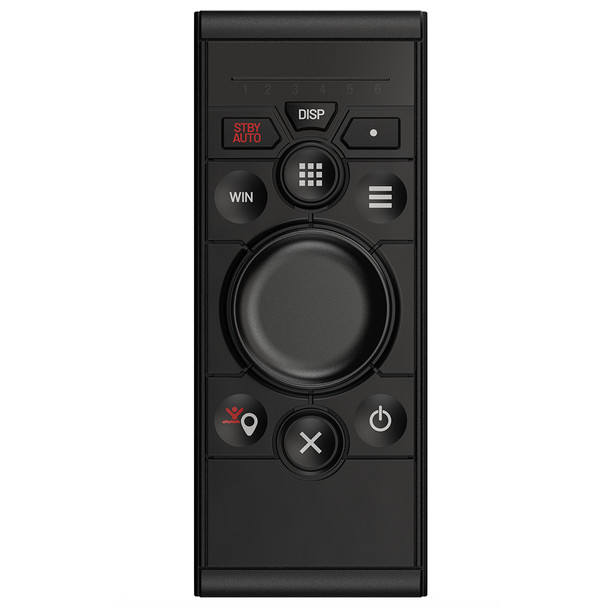

OP-55 Portrait Remote Control for NEON™ OS MFDs

Features:

• Control up to six compatible multifunction displays running NEON™ OS
• High-quality aluminum control dial with built-in cursor functions
• Customizable key for more flexibility
• Low-profile dash mount, or total flush-mount with optional bracket
• Integrated high-decibel speaker for critical alarms
• Portrait orientation (landscape version also available)
• Narrow design perfect for helm chair arm mounting
• Compatible with Simrad® NSO® 4, NSS® 4 and NSX® / B & G® ZEUS® SRX, ZEUS® SR and Zeus® S

Manage Multiple Displays

Networked with a single NMEA 2000® connection for both power and control, one OP55 Remote Controller can operate up to six networked multifunction displays. Integrated LED indicators clearly show which display is selected, while a dedicated button cycles quickly through the available displays.

Controls Optimized for NEON™ OS Displays

The OP55 Remote Controller features a keypad specifically designed to operate NEON™ OS multifunction displays efficiently and reliably in all conditions. The controller’s high-quality aluminum dial features a knurled edge for precise control and built-in cursor functions for easy on-screen navigation. An OP55 can be used to add classic controls to a touchscreen system or to give one station total control over multiple Simrad® displays.

Easy Mounting in Horizontal or 'Landscape' Orientation

The portrait OP55 is perfectly suited to mounting in the arm of a helm chair, with its narrow design and side-entry cable. Dash mounting provides a slim eight-millimeter profile, while an optional bracket allows total flush-mount installation.

Custom Key Button

A fully programmable button that gives you fast access to the functions and apps you use most. Set different actions for single, double, or long presses so you can launch key features instantly with one simple control.

In the Box:

• OP-55 Controller
• N2K T-Joiner
• OP50/ZC2 Suncover
• OP50/ZC2 Dash Mounting Kit
